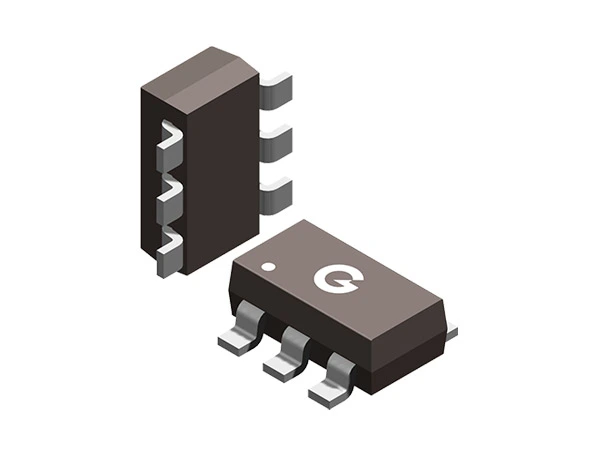

2N7172-6L Small Signal MOSFETs

N0.43A, 60V, 1W, P: -0.35A,-60V,1W N+P Channel, Small Signal MOSFETs

Product Parameter of 2N7172-6L Small Signal MOSFETs

AEC QualifiedNO
Pb FreeYES
Halide freeYES
Marketing StatusActive
Channel PolarityN
TJ(°C) max.150
TJ(°C) min.-55
PD(W) Max.1
V(BR)DSS(V) Min.N:60, P:-60
VGS(V) Max.±20
ID(A) Max.N:0.43, P:-0.35
IGSS(uA) Max.±10
VGS(th)(V) Max.N:2.5, P:-2
RDS(on)(mΩ)@ 10V Typ.N:1400, P:1800
RDS(on)(mΩ)@ 10V Max.N:2500, P:4000
RDS(on)(mΩ)@ 4.5V Typ.N:1800, P:2300
RDS(on)(mΩ)@ 4.5V Max.N:4000, P:7000
RDS(on)(mΩ)@ 2.5V Typ./
RDS(on)(mΩ)@ 2.5V Max./
RDS(on)(mΩ)@ 1.8V Typ./
RDS(on)(mΩ)@ 1.8V Max./
Qg(nc) Typ/

HJL Electronics provides affordable and highly reliable electronics component made in China!
Waiting for your inquiry!
