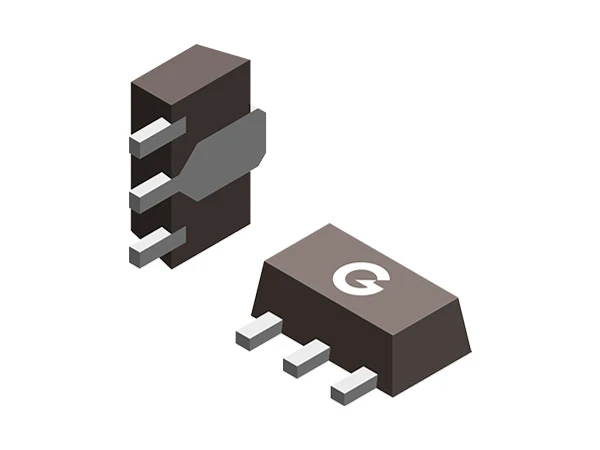

2N7002HE Small Signal MOSFETs

0.4A, 60V, 0.5W, N Channel, Small Signal MOSFETs

Product Parameter of 2N7002HE Small Signal MOSFETs


PackageSOT-89
AEC QualifiedNO
Pb FreeYES
Halide freeYES
ReachYES
RoHSYES
Marketing StatusActive
ConfigurationSingle
Channel PolarityN
ESDY
TJ(°C) max.150
TJ(°C) min.-55
PD(W) Max.0.5
V(BR)DSS(V) Min.60
VGS(V) Max.±20
ID(A) Max.0.4
IGSS(uA) Max.±10
VGS(th)(V) Max.2.5
RDS(on)(mΩ)@ 10V Typ.1450
RDS(on)(mΩ)@ 10V Max.2500
RDS(on)(mΩ)@ 4.5V Typ./
RDS(on)(mΩ)@ 4.5V Max./
RDS(on)(mΩ)@ 2.5V Typ./
RDS(on)(mΩ)@ 2.5V Max./
RDS(on)(mΩ)@ 1.8V Typ./
RDS(on)(mΩ)@ 1.8V Max./
Qg(nc) Typ/
@Vgs(V)/
ECCN(US)EAR99


HJL Electronics provides affordable and highly reliable electronics component made in China!
Waiting for your inquiry!
